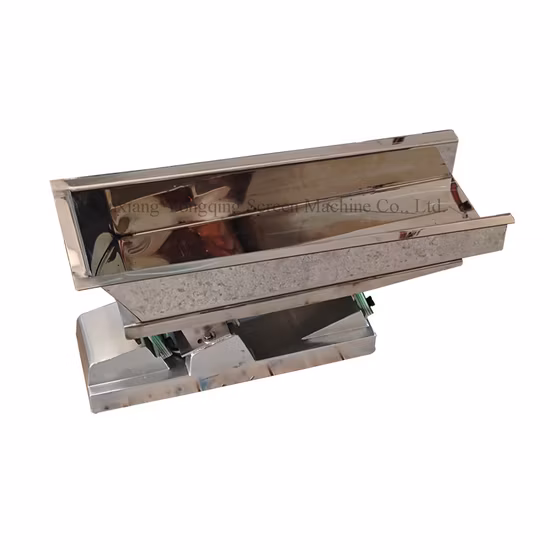

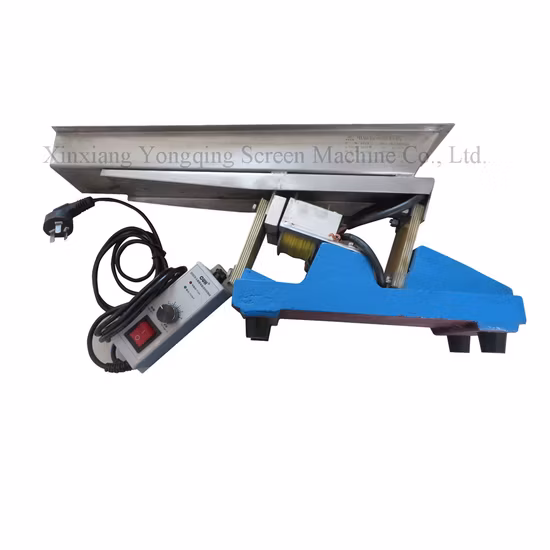

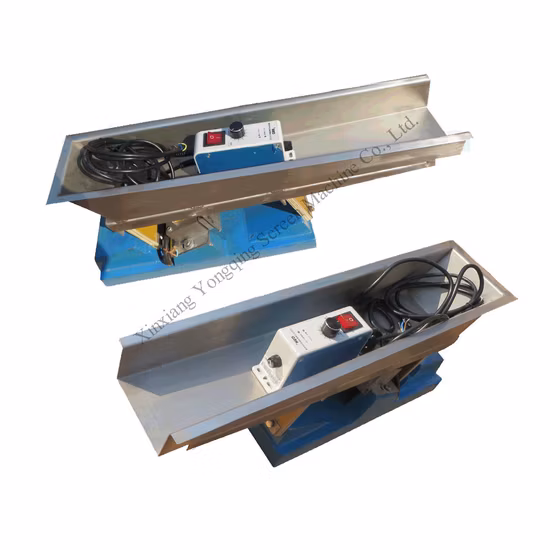

Electromagnetic Belt Vibrating/Weigh Feeder for Coal/Cement/Chemical/Metallurgy/Food/Fertilizer Industry

Basic Info

Model NO.	TDG
Max Feeding (mm)	750
Capacity(t/h)	400-600
Motor Power(kw)	20~25
Installation Slope	Customized
Chute size(mm)	Customized
Overall Dimension	Customized
Measurement Accuracy	Over 0.5%
Application	Cement,Coal,Chemicals,Food Industry
Model	Tdg05/06/08/10/12/14/16/18
Min Quantity	1PC
Adjustable Speed	Yes
Spillage-Proof Device	Yes
Belt Width	500-1800mm
Certificate	Quality Certificate
Motor Reducer	Sheink Weighing Special Reducer
Material	Carbon Steel
Flow Range	0.05-1000 M3/H
Magnet Material	Neodymium
Speed	Adjustable
Color	Customized
Device	Spillage-Proof
Transport Package	Stainless Steel Frame and Wooden Case
Specification	Customized
Trademark	Baite
Origin	China
HS Code	8428399000
Production Capacity	500 PCS Per Year

Product Description

TDG variable frequency speed control quantitatively feeding scale is a kind of equipment specially designed by our company and domestic and foreign advanced technology. It is understood that the main minerals have the original ore and through crushing, washing, drying, classification, such as processing concentrate products, copper ore, chrome ore, nickel ore, cobalt ore, bauxite and other resources. The product can be used with the conveyor after crushing or screening. The scale is not deformed and the measuring accuracy is stable and accurate. The special anti-leakage device, frictionless operation, low maintenance rate and long service life have greatly improved the working efficiency and high precision speed measuring device. Products are popular in South America,Africa and Southeast Asia countries.

Precision computer batching scale is widely used in metallurgy, mining, coal, building materials, chemical industry, energy sector and so on. It is equipment of measurement, dosing, continuous dosing for powder, bulk solids and small block materials. It have significant effect in improving production efficiency and reducing energy consumption and improving the quality of products

Features1. The frame of the conveyor belt scale is made of cold bending C type steel plate, and it has a rational structure and strong intensity.2. Low noise, less vibration, dust proof, high reliability and a long service life.3. Annular belt without junction, and users can choose parallel belt, baffle plate or rimmed belt structure.4. Unique X type leaf spring measuring device to make better linearity and repeatability.5. Magnetic-sensing speed measuring device and speed measuring electric circuit make accurate and reliable speed measuring signal.6. Adopting unique belt anti off tracking device and belt automatic tensioning deviceworking principle:

Application on site:

Product Parameters

NO.	Model	Bandwidth (mm)	Flow range (m³/h)	Accuracy
1	TDG05	500	0.05-6	Over0.5%
2	TDG06	600	0.5-10
3	TDG08	800	2-30
4	TDG10	1000	5-100
5	TDG12	1200	10-200
6	TDG14	1400	30-300
7	TDG16	1600	50-500
8	TDG18	1800	100-1000

Certifications

Packaging & Shipping

Company Profile

Weifang Baite Magnet Technology is a modern enterprise, which was founded by Weifang Hengli Magnet Equipment Factory and Weifang Kexin magnet equipment factory in conjunction with other domestic investors. It is the enterprise of producing magnetic and powder equipment, is the larger magnetic equipment manufacturer of research and development, engineering design, production and installation, commissioning and service.The company mainly produces over 30 series 200 kinds of specifications, such as magnetic separator, de-ironing separator, crusher, disk-type, permanent magnet vacuum filter, metal detector, grinding equipment, aggregate equipment, grinding and processing equipment. The service is related to more than 10 areas, such as electricity, coal, building materials, metallurgy, ports, mining, nonferrous metals, powder environmental protection. At present, we have provided more than 7000 domestic and foreign customers with reliable and value-added and convenient professional equipment and programs, and at the same time, Products are exported to Russia, Mongolia, India, Indonesia, Malaysia, the Philippines, Vietnam, Thailand, Iran, the United Arab Emirates, Pakistan, Kazakhstan, South Africa, Zimbabwe, Brazil, Chile, Peru, Australia and other dozens of countries and regions.There is no best, only better. Baite has firmly implemented ISO9001: 2000 international quality management system standard and ISO10012 international quality inspection system standard, relying on technological innovation, and continuously improve core competitiveness. We innovate and constantly improve product performance, quality, extend the application scope to meet user higher demand. To become an international leader in magnetic application system is the goal of Baite...With well-equipped professional engineers and strong technical force, Baite has been in this feild for 10 years, we cooperate with superior suppliers to keep our quality, the test of materials is free if you are interested in our machine, strict quality checked for every machine before packing, engineers available to service machinery overseas, inaddition, there is not only after sales service support, but also technology supportBaite company commitments the aim of " striving for survival with top quality, promoting development with good reputation, winning the world with good faith ". We warmly welcome all the friends to the cooperation!

Exhibition in Indonesia:
laboratory

Our other main products:

Our Advantages

1.Pre-sale services: enthusiasmWe provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.2.one-year warranty to make sure your machine runs consistently.We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.3.Technical services3.1 Design of production line and solutions according to buyer's requirement.3.2 In 7 days after the receipt of deposit, the seller shall provide related technical documents for equipment installation, in addition to those with special requirements.3.3 Before delivery, the seller can modify the previous solutions according to buyer's requirement. 4.After-sales service4.1 During the installation and commissioning, the seller shall send technician to the site for instruction of installation and commissioning, and for training of workers.4.2 If there is any equipment failure caused by the buyer, the seller shall assist the maintenance of machines and replacement of fittings, and charges appropriate fees.4.3 Beyond the guarantee period, the seller can provide services and fittings at a most preferential price. 4.4The seller can provide consultation and inspection services freely for other products, especially for the up-stream and down-stream products of our equipment.

FAQ

Q: Are you a factory ?
A:Yes,we are factory, which was established in 2003.We focus on providing expert service including design, manufacture, installation & maintenance
Q: Terms of Payment: A:30% of the total amount by TT as deposit, the balance to be paid by TT or L/C at sight before the machines leaving seller' factory.100% irrevocable L/C at sight.
Q:Time for preparation of goods: A:The above machines shall be ready for delivery during 35 days from the date of receiving the deposit/LC, excluding the time of waiting for shipment. Q:Guarantee period: A:The guarantee period for the above machines is twelve months from the date of putting into use, but not exceeds twenty-four months after the machines leaving seller's factory. It is not applicable for quick wear parts
Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. Every step will be send to you in time
Q: Can I customize shelving or racking at my own size? A: Sure
Q: If i need the complete mineral processing line. is Baite able to help us build it?

A: Yes, we can help you combine a complete mineral processing line. and give you related professional advice as long as you need.There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.

Information for RFQ:
1. Which kind of material are you going to deal with?
2. What is the width of the conveyor belt?
3. What is the processing capacity you are going to achieve?

Welcome Inquiry & we will reply to you within 24 hours.
