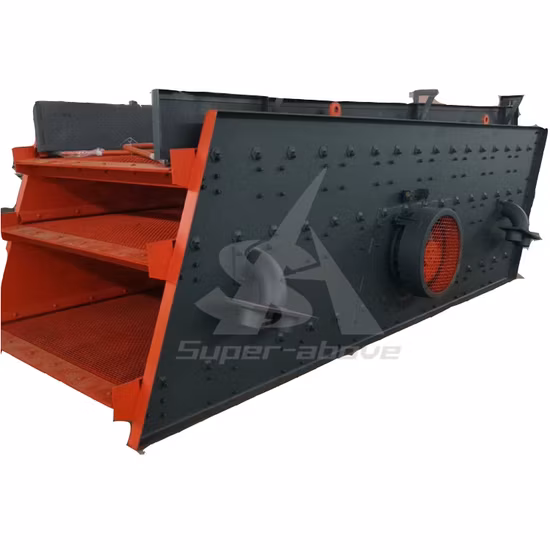

Energy Saving Mining Rock Stone Circular Vibration Screen
1 Application of Energy Saving Mining Rock Stone Circular Vibration Screen Circular vibrating screen circular vibrating
Basic Info
Model NO. | 2YK1230 |
Shaft Number | Depend on The Model |
Running Track | Circular Vibrating Screen |
Supporting Device | Rubber Spring |
Warranty | 1 Year |
Customized | Customized |
Condition | New |
Name | Energy Saving Mining Rock Stone Circular Vibration |
Keywords | Stone Circular Vibration |
Installation | Engineer Guide |
Power(W) | 5.5kw |
Certification | Ce ISO |
Dimension(L*W*H) | 3430*1860*1050mm |
Weight | 2253kg |
Advantage | High Efficience |
Price | Discount Price |
Voltage | 220V/380V/50Hz |
Material | Carbon Steel |
Screen Size | 4-50mm |
Payment | T/T |
Feature | Large Capacity |
Delivery Time | 15-20days |
Transport Package | International Universal Package |
Specification | According to customer needs |
Trademark | Hengchang |
Origin | China Gongyi City, Henan Province |
HS Code | 8474100000 |
Production Capacity | 10-75 T/H |
Product Description

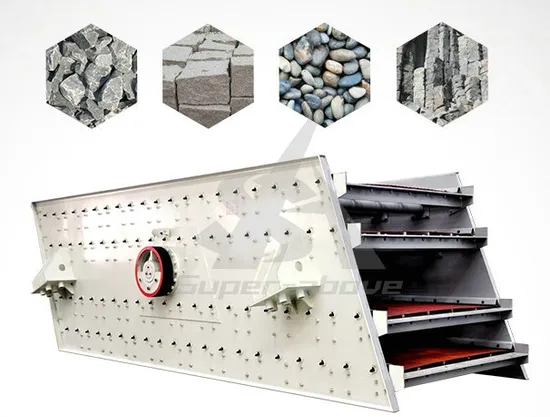

1 Application of Energy Saving Mining Rock Stone Circular Vibration ScreenCircular vibrating screen circular vibrating screen to do circular motion, is a multi-layer, efficient new vibrating screen. The circular vibrating screen adopts the cylindrical eccentric shaft exciter and the offset block to adjust the amplitude, the material sieving line length, the screening specification is large, the structure is reliable, the exciting force is strong, the screening efficiency is high, the vibration noise is small, the rugged and the maintenance Convenient, the use of safety and other characteristics, the vibrating screen is widely used in mining, building materials, transportation, energy, chemical and other industries product classification.
2 Working Principle of Energy Saving Mining Rock Stone Circular Vibration Screen
Circular vibrating screen is single-axis circular-movement inertial vibrating screen, the working of circular vibrating screen depends on inertial motor and inertial strength produced by eccentric plate, because of the vibration of screen box, the materials are threw out, so that materials of certain size go through the screen mesh, and the screening aim is realized. Since the magnetic exciter is installed on the gravity center of screen box, the two long elliptical axis form a shape like a Chinese character, and the upper of long elliptical axis in inlet end is in the same direction with the outlet, which favors the spread of materials which is in the screen box
3 Main Features of Energy Saving Mining Rock Stone Circular Vibration Screen
( 1 ), processing ability, high screening efficiency.( 2 ), vibrator bearing thin oil lubrication, external block eccentric structure. With a large exciting force, bearing load, low temperature, low noise and other advantages. (Bearing temperature less than 35 °).( 3 ), the overall disassembly, maintenance, easy replacement, greatly reducing the maintenance cycle. (Replace the vibrator only for 1 to 2 hours).( 4 ), the panel side of the whole plate cold plate processing, no welding, high strength, long service life. Between the beam and the side plate with anti-twist shear high strength bolts, no welding, easy to replace the beam.( 5 ), the sieve with a rubber spring vibration, and the metal spring ratio, low noise, long life, the entire vibration area smooth, sieve machine branch point dynamic load and so on.6, motor and exciter connection using flexible coupling, long life, the impact of small motor advantages.
4. Our service
(1) Installation and guidanceWhen the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client's factory.(2)Technical trainingWe provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.(3)Warranty:Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.
5. Technical Parameters of China Energy Saving Mining Stone Circular Vibration Screen
Model | Screen Deck | Installation Slope(°) | Screen Size(m2) | Screen Pore Size(mm) | Feeding Size(mm) | Capacity(t/h) | MotorPower(kw) | Weight(kg) | Dimension(LxWxH)(mm) |
YK1230 | 1 | 15 | 3.6 | 4-50 | ≤300 | 10-75 | 5.5 | 1468 | 3430×1860×1050 |
2YK1230 | 2 | 15 | 3.6 | 4-50 | ≤300 | 13-78 | 5.5 | 2253 | 3430×1860×1050 |
3YK1230 | 3 | 15 | 3.6 | 4-50 | ≤300 | 15-80 | 7.5 | 2978 | 3570×1860×1510 |
4YK1230 | 4 | 15 | 3.6 | 4-50 | ≤300 | 17-90 | 7.5 | 3892 | 3740×1860×2060 |
YK1235 | 1 | 15 | 4.2 | 4-50 | ≤300 | 20-150 | 5.5 | 1729 | 3605×2393×1050 |
2YK1235 | 2 | 15 | 4.2 | 4-50 | ≤300 | 20-150 | 5.5 | 2474 | 3605×2393×1050 |
3YK1235 | 3 | 15 | 4.2 | 4-50 | ≤300 | 22-150 | 7.5 | 3158 | 3725×1452×1200 |
4YK1235 | 4 | 15 | 4.2 | 4-50 | ≤300 | 22-150 | 7.5 | 4160 | 4010×1452×1200 |
2YK1545 | 2 | 20 | 6.75 | 5-50 | ≤300 | 22-150 | 11 | 5308 | 5042×3090×1230 |
3YK1545 | 3 | 20 | 6.75 | 5-50 | ≤300 | 50-180 | 15 | 5915 | 4972×3458×1610 |
4YK1545 | 4 | 20 | 6.75 | 5-50 | ≤300 | 50-180 | 15 | 7126 | 4915×3458×2060 |
2YK1554 | 2 | 20 | 8.1 | 5-50 | ≤300 | 50-200 | 15 | 5284 | 5830×3458×1230 |
3YK1554 | 3 | 20 | 8.1 | 5-50 | ≤300 | 56-200 | 15 | 6186 | 6110x3515x1610 |
4YK1554 | 4 | 20 | 8.1 | 5-50 | ≤300 | 56-250 | 18.5 | 7284 | 6320×3515×2060 |
2YK1854 | 2 | 20 | 9.72 | 5-80 | ≤300 | 56-200 | 18.5 | 5826 | 5880×2550×1420 |
3YK1854 | 3 | 20 | 9.72 | 5-80 | ≤300 | 56-300 | 18.5 | 7368 | 6080×2550×1610 |
4YK1854 | 4 | 20 | 9.72 | 5-80 | ≤300 | 56-300 | 22 | 8281 | 6280×2550×2160 |
2YK1860 | 2 | 20 | 10.8 | 5-80 | ≤300 | 60-400 | 22 | 6195 | 6552×3730×1320 |
3YK1860 | 3 | 20 | 10.8 | 5-80 | ≤300 | 80-400 | 22 | 7613 | 6862×3730×1610 |
4YK1860 | 4 | 20 | 10.8 | 5-80 | ≤300 | 90-500 | 30 | 8650 | 7123×3730×2061 |
2YK2160 | 2 | 20 | 12.6 | 5-80 | ≤300 | 100-720 | 22 | 6856 | 6552×3958×1320 |
3YK2160 | 3 | 20 | 12.6 | 5-80 | ≤300 | 100-720 | 30 | 9112 | 6862×3958×1610 |
4YK2160 | 4 | 20 | 12.6 | 5-80 | ≤300 | 100-720 | 30 | 10405 | 7123×3958×2061 |
2YK2460 | 2 | 20 | 14.4 | 5-80 | ≤300 | 130-750 | 30 | 8503 | 6552×4208×1320 |
3YK2460 | 3 | 20 | 14.4 | 5-80 | ≤300 | 130-750 | 37 | 10411 | 6862×4208×1610 |
4YK2460 | 4 | 20 | 14.4 | 5-80 | ≤300 | 130-750 | 45 | 12068 | 7123×4208×206 |
6. Our copmany
Gongyi Hengchang Metallurgy Building Material Equipments plant is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments.
7. Buying Guides
To choose the appropriate model for you ,can you tell me:(1) What's the raw materials(such as limestone) and its size(mm/inch)?(2). What do you neeed ?a machine or a stone production line ?(3). What's the required capacity(tons per hour or t/h)?
FAQ:
1 Are you a trading company or manufacturer? What is your main products? We are a manufacturer, Our factory name is Gongyi Hengchang metallurgical building materials equipments plant. which has over 25 years of experience in this industry. Our Main products are Jaw crusher,Impact crusher,Cone crusher,Hammer crusher,Vibration feeder,Vibration screen,sand/stone washing machine,ball mill,flotation machine,Disc pelletizer, concentrator,Rotary dryer,Conveyor machine ,Briquette machine , Mixer ,Roller grinder and so on,We produce products divided into Stone prodution line and Sand-making productiong line,Magnetic separating process ,Flotation separating process ,Gravity separating process ,Coal and mineral powder briguetting . 2 Can I visit your factory and clients' workshop? How to get to your factory? Yes, welcome to visit our factory anytime, we can also arrange your visit in our China clients' workshop.For getting to our factory, you can get a flight to Zhengzhou Airport. It just takes about 2 hour from Zhengzhou Airport to our factory by car. 3 What is your guarantee time and aftersale service? --Our guarantee time is 1 years.--EEach order machine we provide installation drawing and operation manual. If needed, engineers can be sent to your factory for installation and commissioning, training.--Any problem in operation or others about machines, we will give solution in 12-24hours. 4 What is your payment term?We can accept various payment terms if it is convenient for you. 5 What is your delivery time? machine leadtime is 7 working days in standard specification, 15~20 working days if customized. Pls tell your questions,Hengchang factory team are happy to serve&ready to be your business partner! If you want to know more details, please contact Winni ! Your satisfaction is our greatest pursuit. Contact: AmandaWebsite: http://hcmining.en.made-in-china.com Mobile: 0086 371 86106152
